The production capacity of YHZS25 foundation free concrete mixing plant is 25m ³/h. It adopts a modular design without foundation and debugging, and has the characteristics of good mobility and easy and fast installation. It only takes 3 days from installation to use. In addition, the YHZS25 cement mixing plant adopts patented technology "click to supplement", dual control system, and self calibration technology to ensure the production of high-quality concrete.
YHZS25 adopts JS500 dual axis forced mixer and main mixer, with high mixing efficiency and wide mixing range, which can fully meet various production requirements. YHZS25 concrete mixing plant is an ideal concrete equipment for bridges, highways, ports, water conservancy projects, power stations and other engineering projects.
Features
1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation.
| Theoretical productivity of foundation-free HZS90 concrete mixing station | 25m3/h |
| concrete mixer model | JS500 |
| Stirring motor power | 18.5kW |
| cycle period | 60/s |
| Mixer nominal capacity | 500L |
| The largest particle size of aggregate | Φ80mm |
| Powder bin capacity | 100t |
| Batching station batching capacity | 800L |
| Aggregate bin capacity | 3×20m3 |
| Aggregate type | 3 |
| Aggregate Belt Conveyor Productivity | 600t/h |
| screw conveyor maximum productivity | 80t/h |
| Discharging height | 4.2m |
| Installed capacity | 164kW |
| Aggregate weighing range and accuracy | (0~5000)±2%kg |
| Cement weighing range and accuracy | (0~900)±1%kg |
| Fly ash weighing range and accuracy | (0~500)±1%kg |
| Water weighing range and accuracy | (0~400)±1%kg |
| Admixture weighing range and accuracy | (0~50)±1%kg |
| Standard reference total | 97×103kg |

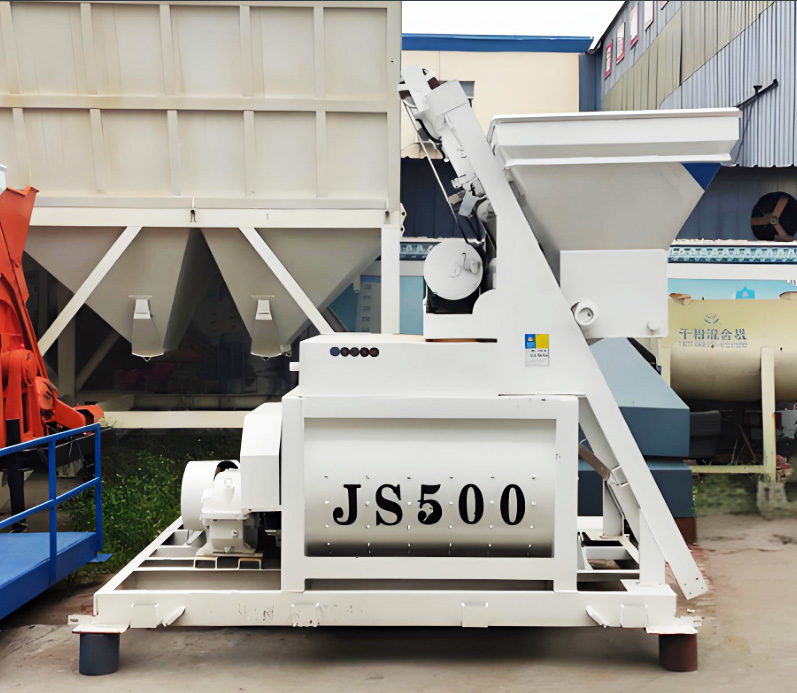

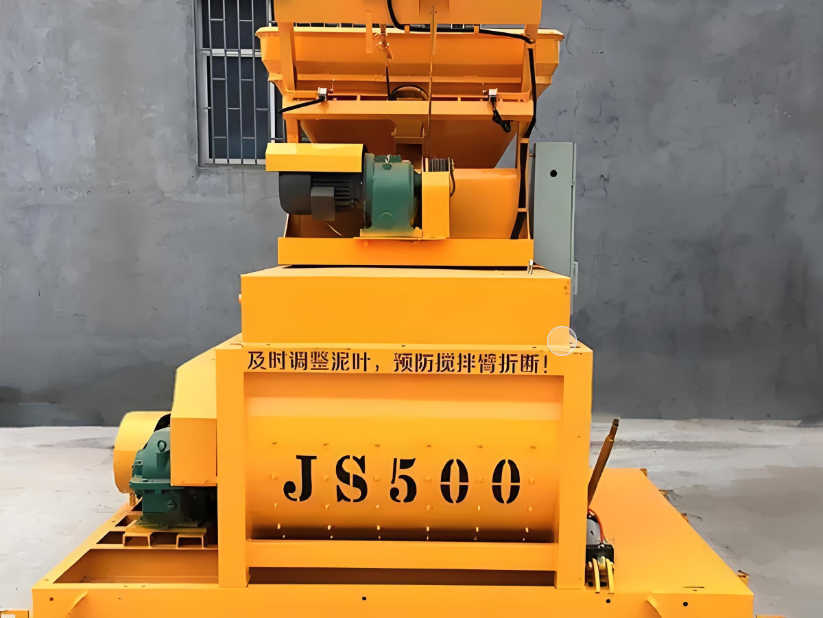

Concrete mixer
JS Series Mixer： 1.Thickening track : 18# channel steel 2.Protection device: Travel witch 3.Wear resistant Steel wire: Alloysteel 4.Bigger hopper:800-2400L 5.Discharge gate with sealing rings 6.Pneumatic unloading & manual unloading 7.Air pump control 8.Electric pump with throttle valve 9.Cleaning device 10.Spraying device.
PLD Series Batching Machine
SMART mobile batching plant adopts microcomputer and operation-console double control system, having automatic, semi-automatic and manual three controlling modes. YHZS25 fully consider the concrete requirements, having the unique technologies of unique ratio deposit, storage, self-compensation of weighing fall and moisture, self-reversing of over-weighing and short-weighing,
Cement Silo
It is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
Weighing System
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Zhengzhou Jinhuiyuan Machinery Manufacturing Co., Ltd. was established in 2000 and is located in Xingyang City, Henan Province, which is known as the "hometown of Chinese construction machinery". As a backbone enterprise in the construction machinery industry in Henan Province, the company has a registered capital of 31 million yuan and specializes in the research and development, manufacturing, and sales of engineering machinery and equipment such as concrete mixing plants and stabilized soil mixing plants. After more than 20 years of steady development, the company has grown into a modern mechanical manufacturing enterprise integrating research and development, production, sales, and service.
The company has always adhered to the development concept of "quality based enterprise, integrity management", and has obtained multiple authoritative certifications: ISO9001 international quality management system certification, environmental management system certification, occupational health and safety management system certification, and national AAA level quality service integrity unit.
With excellent product quality and a comprehensive service system, Jinhuiyuan Machinery's products are exported to more than 100 countries and regions around the world, including Asia Myanmar, Indonesia, Laos, Mongolia, Kazakhstan, Uzbekistan, etc; Europe Russia and surrounding regions; Africa - Angola, Zimbabwe, Algeria, etc. The company has established a global marketing network and set up offices and service outlets in key markets to ensure timely and professional service support for customers.
Jinhuiyuan Machinery always adheres to the service concept of "customer first" and has built a complete service system: 1 Pre sales service: Provide professional consultation and customized solution design In sales service: Arrange professional engineers to guide installation and debugging. 3 After sales service, the company has an experienced service team to ensure that global customers have no worries.
The company will continue to increase research and development investment, deepen international cooperation, and strive to become a globally competitive construction machinery manufacturing enterprise, contributing Chinese strength to the world's infrastructure construction.
1. Guarantee Time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
