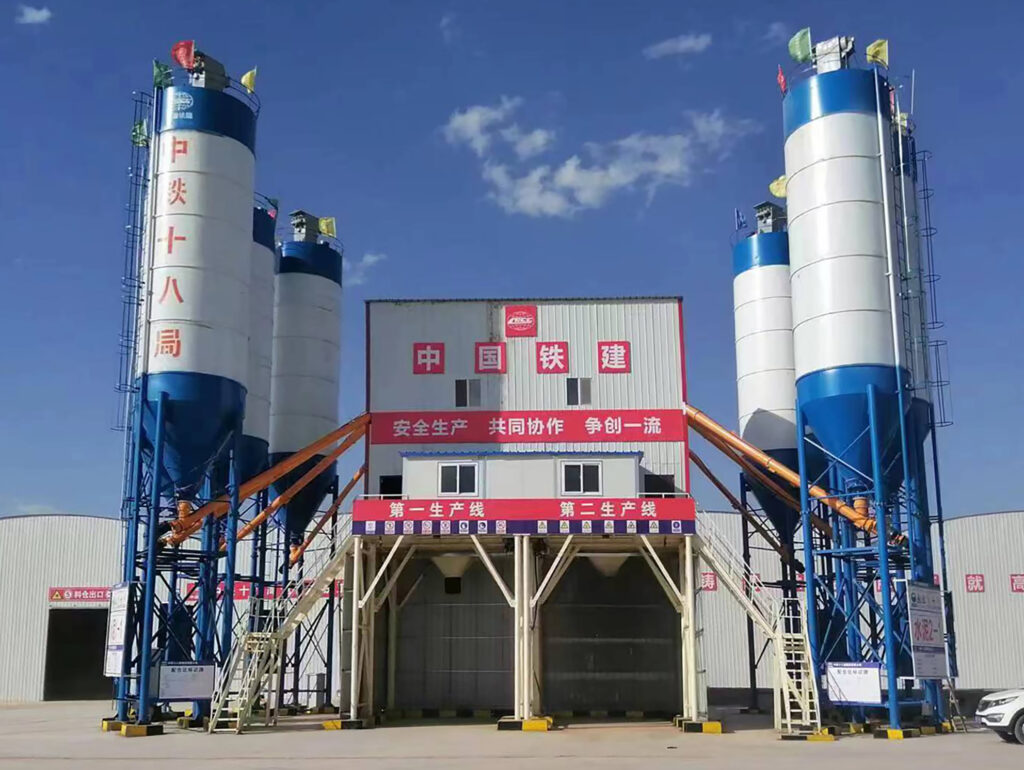

Concrete batching plant HZS180 theory output is 180m³/h, which adopts JS3000 twin shaft compulsory concrete mixer as the host machine.
The discharging height of HZS180 batching plant is 3.8m. HZS180 includes two rows of cement silos and a series of screw conveyors. The whole concrete batching plant producing work is controlled by PLC industrial computer. HZS180 cement mixing plant adopts the newest-designed electronic weighing, microcomputer control, digital displaying mode and so on.
The electronic weighing has the function of self-compensating and high precision. HZS180 is the ideal concrete equipment for producing high-quality concrete.
| Mixing station model | HZS180 | |
| productivity（m³/h） | 180 | |
| Mixing host | model | JS3000 concrete mixer |
| power（kw） | 2×55kw | |
| Discharge volume（m³） | 3 | |
| Aggregate size（mm） | ≤150 | |
| Ingredients warehouse | Aggregate silo capacity（m³） | 4×20 |
| Number of bins | 4 | |
| Belt conveyor capacity（t/h） | 400 | |
| Weighing accuracy | aggregate（kg） | 6500±2% |
| cement（kg） | 1800±1% | |
| fly ash（kg） | 600±1% | |
| water（kg） | 800±1% | |
| Admixture（kg） | 50±1% | |
| total power（kw） | 178 | |
| Discharging height（m） | 3.8 | |
JS Series Mixing Machine
Smart horizontal twin-shaft compulsory mixer has the features of quick and uniform mixing and high efficiency. Both of the scaleboard and blades are made of hard-wearing high-chromium iron, having long working life. Multi-layer shaft-end sealing technology largely improves mixer’s using life. The reducer adopts famous Bonfiglioli brand, efficient and reliable.
The heavy-duty design has excellent shock absorption ability. The discharging mode both adopt hydraulic type and manual type to guarantee discharging successfully in any case. The gearing components, lubrication system and cylinder adopt domestic or international famous brand to guarantee excellent performance.
Aggregate Batching Machine
PLD series concrete batching machine adopts electronic weighing, computer control, digital display, which can automatically finishthe batching procedure of 3-6 kinds of aggregates, such as sand, stone or cement.
Using three-point weighing method,it has features of accurate weight, auto compensation, fast speed and easy operation.Hopper cumulative weighing, belt cumulative weighing and separate weighing are available.
Smart PLD series aggregate batching machine adopt electronic weighing, microcomputer control, digital display, possessing the features of accurate weighing, high precision, quick running, powerful controlling and so on.
According to the producing and customer’s requirement,we have separate weighing and accumulate weighing for choice, and we recommend customers the most suitable batching machine according to practical condition.
Belt Conveyor
The length and width of the belt is 800mm*12mm. The belt is made of four-layer nylon, which is durable. The purpose of conveying materials is to convey dry particles from top to bottom through air, which is energy-saving, noise-free, maintenance-free, and accurate in measurement.
Cement Silo
It is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
Weighing System
Weighing system includes aggregate weighing system, water weighing system, cement weighing system, additive weighing system (optional). Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements.
It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%. Water weighing, cement weighing, additive weighing, also can add some other weighing system according to customer's requirements.
Electric Controls System
Full automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
