DESCRIBE

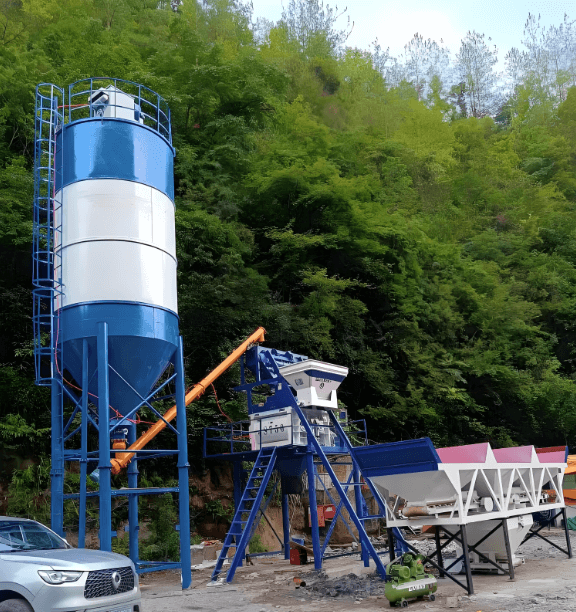

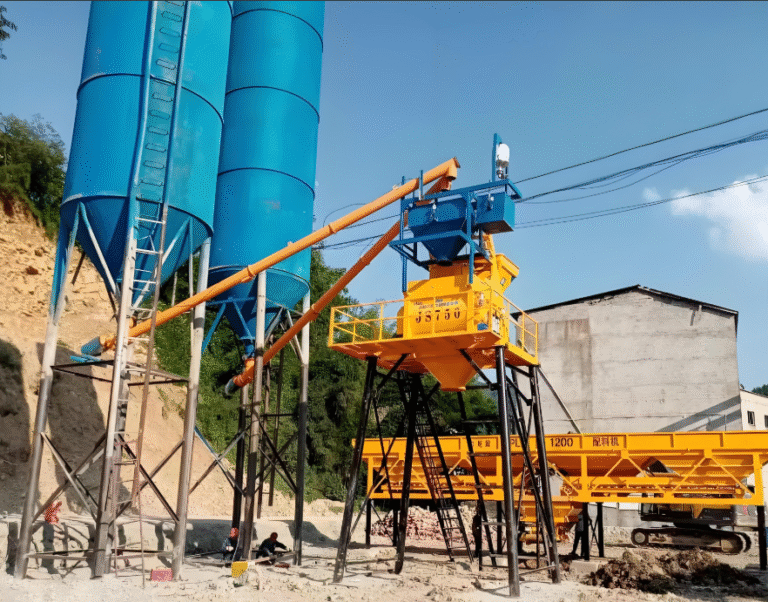

The installation method of HZS35 concrete mixing station adopts steel beam type. It only takes a few hours from unloading to installation of the main system. The installation of other supporting facilities such as control room and batching station can be completed in two to four days and is ready to be put into production. .
The HZS35 concrete mixing plant costs less money, occupies a small site area, requires less equipment, has simple equipment maintenance, and is safe and convenient to operate.
◆HZS35 concrete batching plant, whose production capacity is 35m³/h, flexibly consists of JS750 twin shaft concrete mixer,
◆PLD1200 batching machine, cement silos, control system and relevant equipment.
◆On the other hand, the JS750 twin shaft concrete mixer, compulsory and efficient,
◆can work independently. This kind of 35m³ concrete batch plant is of simple structure, easy installation and disassembling,
◆convenient construction, widely applied to various big and middle industry and civil construction of bridge,
◆highway, water conservancy project and wharf and so on. HZS35 cement batching plant, capable of excellent mixing hard-dry concrete,
◆light aggregate concrete and various mortars, is an ideal equipment to produce commercial concrete.
| Whole site part | model | HZS35 |
| maximum productivity（m³/h） | 35 | |
| Discharge height(m) | 2.5-3.8 | |
| duty cycle time（s） | 72 | |
| Overall dimensions（mm） | 18815×11525 ×13250 | |
| Total installed capacity（kw） | 64.4 | |
| Mixer part | model | JS750 |
| Batching machine part | model | PLD1200 |
| Air system | Air compressor model | VA-100 |
| Rated exhaust pressure（MPa） | 0.7 | |
| exhaust volume(m³/min) | 0.71 | |
| Motor power（kw） | 5.5 | |
| Weighing system | Sand and gravel weighing accuracy | ±2% |
| Cement weighing accuracy | ±1% | |
| Water weighing accuracy | ±1% |

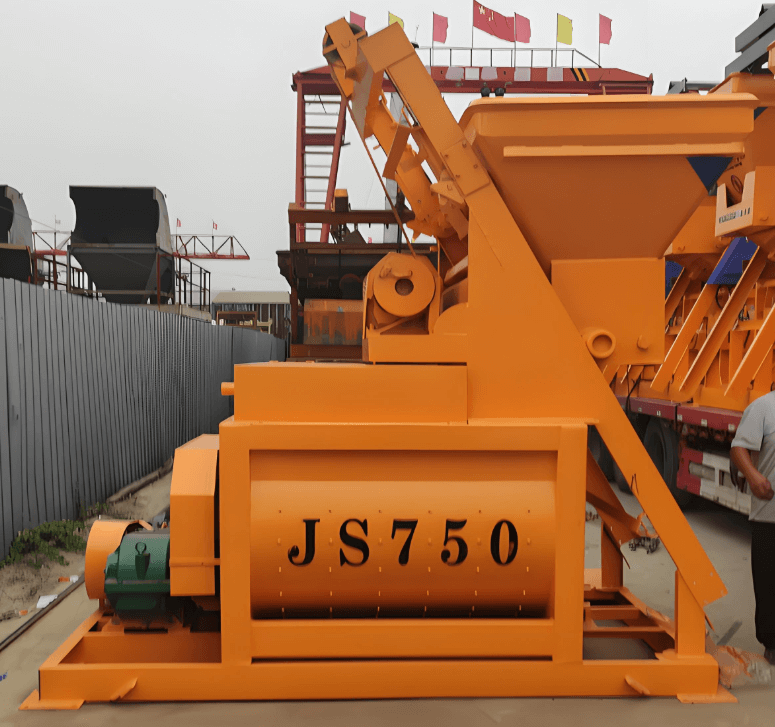

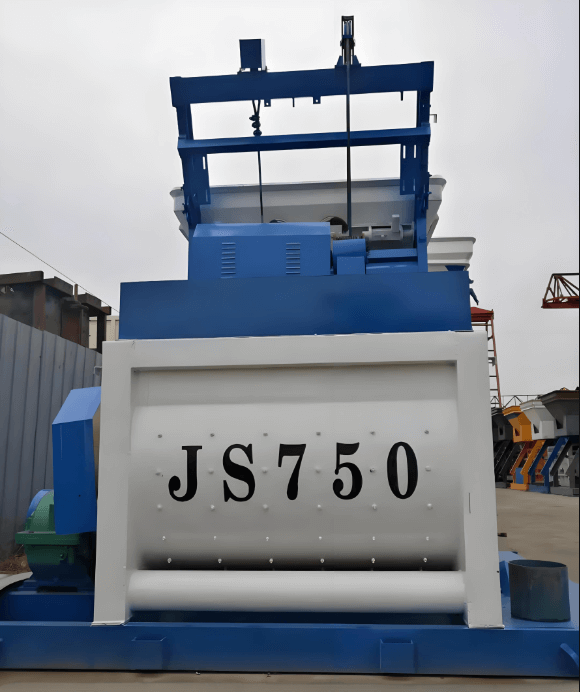

Concrete Mixer
YHZS35 concrete batch plant adopts top-quality JS750 twin shaft forceful concrete mixer, which features for quick and uniform mixing, high efficiency, wide mixing range and excellent-quality concrete, can fullest meet different producing requirement

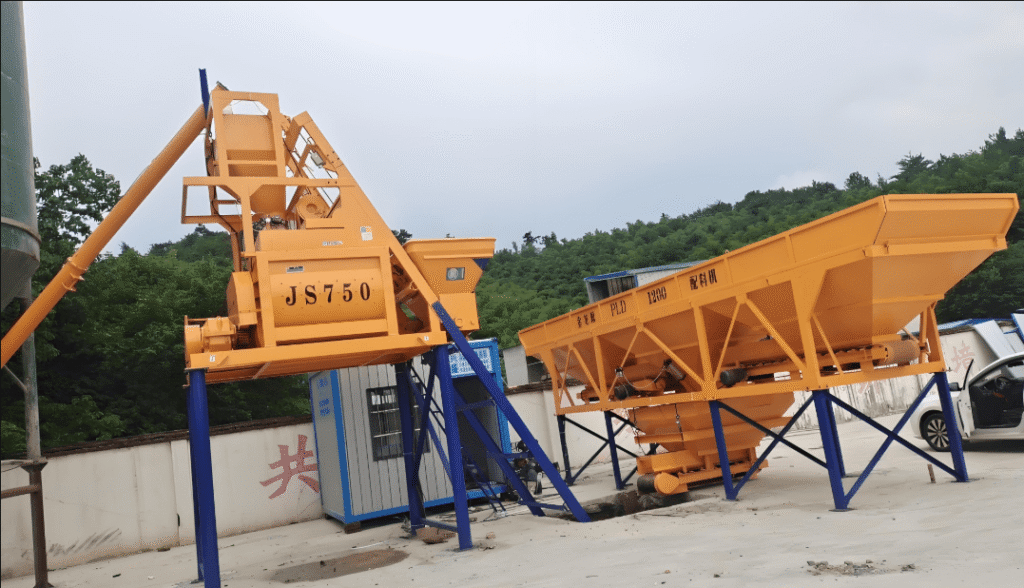

PLD Aggregate Batching Plant
PLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.

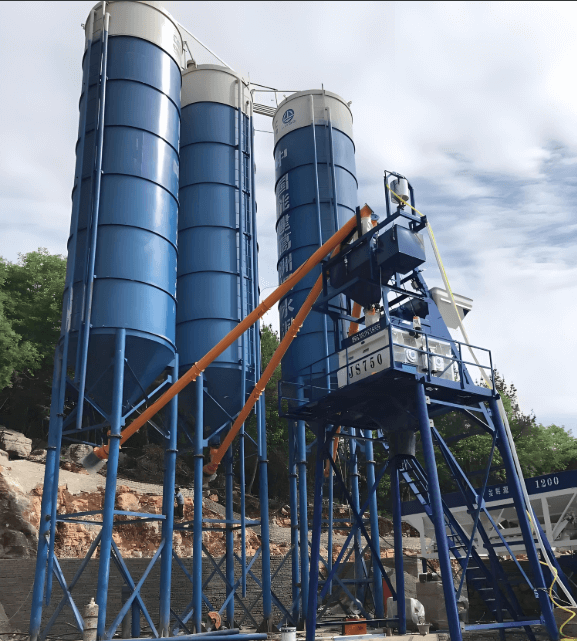

Cement Silo
It is suitable for bulk cement storage silo in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. Waterproof, moisture-proof, prevent cement loss, small footprint, long service life and low cost.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Zhengzhou Jinhuiyuan Machinery Manufacturing Co., Ltd. was established in 2000 and is located in Xingyang City, Henan Province, which is known as the "hometown of Chinese construction machinery". As a backbone enterprise in the construction machinery industry in Henan Province, the company has a registered capital of 31 million yuan and specializes in the research and development, manufacturing, and sales of engineering machinery and equipment such as concrete mixing plants and stabilized soil mixing plants. After more than 20 years of steady development, the company has grown into a modern mechanical manufacturing enterprise integrating research and development, production, sales, and service.
The company has always adhered to the development concept of "quality based enterprise, integrity management", and has obtained multiple authoritative certifications: ISO9001 international quality management system certification, environmental management system certification, occupational health and safety management system certification, and national AAA level quality service integrity unit.
With excellent product quality and a comprehensive service system, Jinhuiyuan Machinery's products are exported to more than 100 countries and regions around the world, including Asia Myanmar, Indonesia, Laos, Mongolia, Kazakhstan, Uzbekistan, etc; Europe Russia and surrounding regions; Africa - Angola, Zimbabwe, Algeria, etc. The company has established a global marketing network and set up offices and service outlets in key markets to ensure timely and professional service support for customers.
Jinhuiyuan Machinery always adheres to the service concept of "customer first" and has built a complete service system: 1 Pre sales service: Provide professional consultation and customized solution design In sales service: Arrange professional engineers to guide installation and debugging. 3 After sales service, the company has an experienced service team to ensure that global customers have no worries.
The company will continue to increase research and development investment, deepen international cooperation, and strive to become a globally competitive construction machinery manufacturing enterprise, contributing Chinese strength to the world's infrastructure construction.
1. Guarantee Time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
