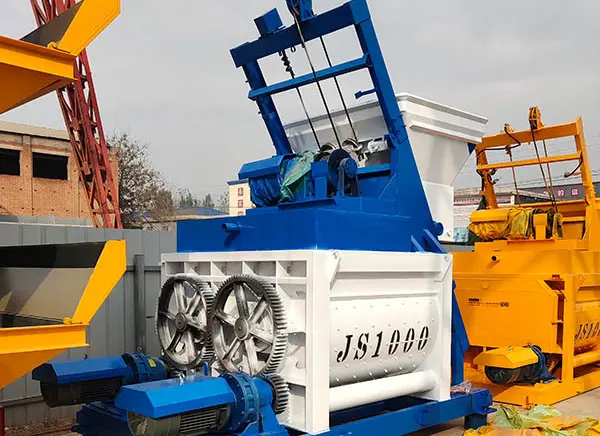

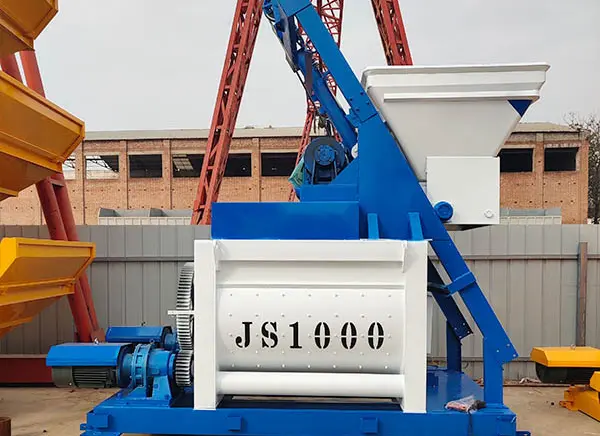

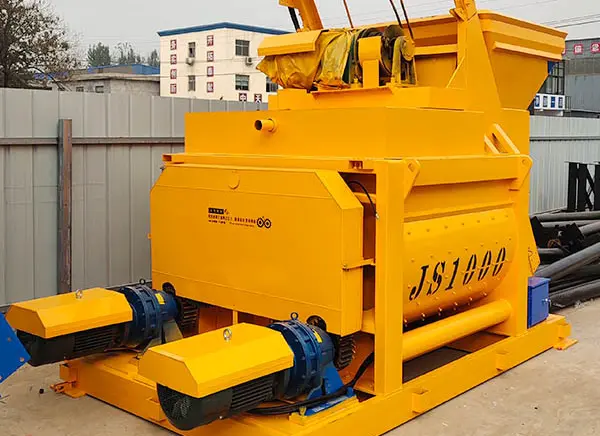

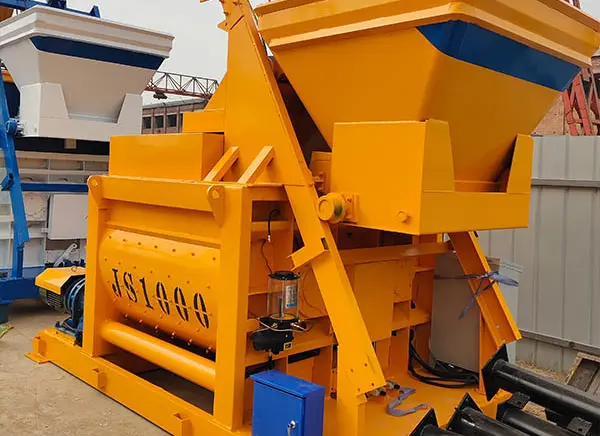

The JS1000 forced mixer discharges 1 cubic meter of material at a time, also called a 1 cubic meter mixer. The theoretical productivity is 50m3/h. It can be used for mixing semi-plastic concrete, plastic concrete, dry-hard concrete, fluid concrete and other materials. It is a high-efficiency Model, mostly used as the host machine of HZS50 or HZS60 concrete mixing station.
1.The JS1000 forced mixer adopts a thickened overall material of the mixing drum to ensure the pressure resistance and durability of the mixing drum.
2.JS1000 forced mixer adopts high-quality reducer, which has long service life, wide reduction range, high precision and large output torque.
3.The main shaft seal of the JS1000 forced mixer adopts a combination of multiple sealing methods. The main shaft is sealed by a floating oil ring and a multi-layer labyrinth seal. The sealing effect is more durable and greatly extends the service life of the equipment.
4.The JS1000 forced mixer has expanded the cylinder volume ratio, optimized the design data of the mixing device, reduced the mixing resistance, and reduced the probability of the mixing device holding the shaft.
| Item/Parameter/Model | JS1000 | |
| Discharge capacity | 1000L | |
| Feed capacity | 1600L | |
| productivity | ≥50m³/h | |
| Maximum particle size of aggregate (pebbles, gravel)mm | 80/60 | |
| Mixing blade | Speed | 25.5r/min |
| quantity | 2×8 | |
| Stirring motor | model | Y225S-4 |
| power | 37kw | |
| Hoist motor | model | YEZ160S-4 |
| power | 11KW | |
| water pump motor | model | KQW65-100I |
| power | 3KW | |
| Hopper lifting speed | 21.9m/min | |
| Overall dimensions | Shipping status | 4640× 2250× 2250mm |
| (length×width×height) | working status | 8765× 3436× 9540mm |
| Overall machine quality | 8700kg | |
| Discharging height | 2700/ 3800mm | |
