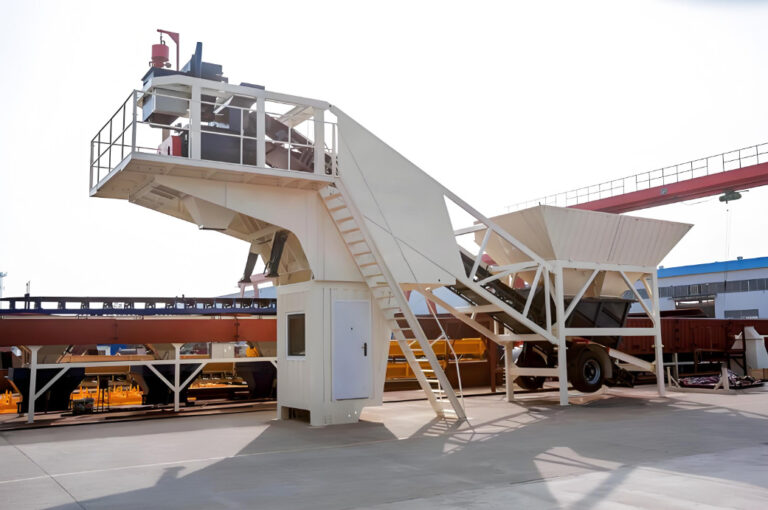

Mobile concrete batching plant YHZS25, whose production capacity is 25m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS25 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete.
YHZS25 adopt JS500 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS25 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.
Features
1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation.
| Theoretical productivity of foundation-free HZS90 concrete mixing station | 25m3/h |
| concrete mixer model | JS500 |
| Stirring motor power | 18.5kW |
| cycle period | 60/s |
| Mixer nominal capacity | 500L |
| The largest particle size of aggregate | Φ80mm |
| Powder bin capacity | 30t/50t/100t |
| Batching station batching capacity | 800L |
| Aggregate bin capacity | 2×20m3 |
| Max.Dragging Speed | 40km/h |
| screw conveyor maximum productivity | 80t/h |
| Discharging height | 3.8m |
| Total Power | 35kw |
| Aggregate weighing range and accuracy | (0~5000)±2%kg |
| Cement weighing range and accuracy | (0~900)±1%kg |
| Fly ash weighing range and accuracy | (0~500)±1%kg |
| Water weighing range and accuracy | (0~400)±1%kg |
| Admixture weighing range and accuracy | (0~50)±1%kg |
Concrete mixer
JS Series Mixer： 1.Thickening track : 18# channel steel 2.Protection device: Travel witch 3.Wear resistant Steel wire: Alloysteel 4.Bigger hopper:800-2400L 5.Discharge gate with sealing rings 6.Pneumatic unloading & manual unloading 7.Air pump control 8.Electric pump with throttle valve 9.Cleaning device 10.Spraying device.
PLD Series Batching Machine
SMART mobile batching plant adopts microcomputer and operation-console double control system, having automatic, semi-automatic and manual three controlling modes. YHZS25 fully consider the concrete requirements, having the unique technologies of unique ratio deposit, storage, self-compensation of weighing fall and moisture, self-reversing of over-weighing and short-weighing,
Cement Silo
It is suitable for bulk cement storage silos in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has a small footprint, long service life, and low cost.
Weighing System
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Control room
Full automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
Zhengzhou Jinhuiyuan Machinery Manufacturing Co., Ltd. was established in 2000 and is located in Xingyang City, Henan Province, which is known as the "hometown of Chinese construction machinery". As a backbone enterprise in the construction machinery industry in Henan Province, the company has a registered capital of 31 million yuan and specializes in the research and development, manufacturing, and sales of engineering machinery and equipment such as concrete mixing plants and stabilized soil mixing plants. After more than 20 years of steady development, the company has grown into a modern mechanical manufacturing enterprise integrating research and development, production, sales, and service.
The company has always adhered to the development concept of "quality based enterprise, integrity management", and has obtained multiple authoritative certifications: ISO9001 international quality management system certification, environmental management system certification, occupational health and safety management system certification, and national AAA level quality service integrity unit.
With excellent product quality and a comprehensive service system, Jinhuiyuan Machinery's products are exported to more than 100 countries and regions around the world, including Asia Myanmar, Indonesia, Laos, Mongolia, Kazakhstan, Uzbekistan, etc; Europe Russia and surrounding regions; Africa - Angola, Zimbabwe, Algeria, etc. The company has established a global marketing network and set up offices and service outlets in key markets to ensure timely and professional service support for customers.
Jinhuiyuan Machinery always adheres to the service concept of "customer first" and has built a complete service system: 1 Pre sales service: Provide professional consultation and customized solution design In sales service: Arrange professional engineers to guide installation and debugging. 3 After sales service, the company has an experienced service team to ensure that global customers have no worries.
The company will continue to increase research and development investment, deepen international cooperation, and strive to become a globally competitive construction machinery manufacturing enterprise, contributing Chinese strength to the world's infrastructure construction.
1. Guarantee Time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
