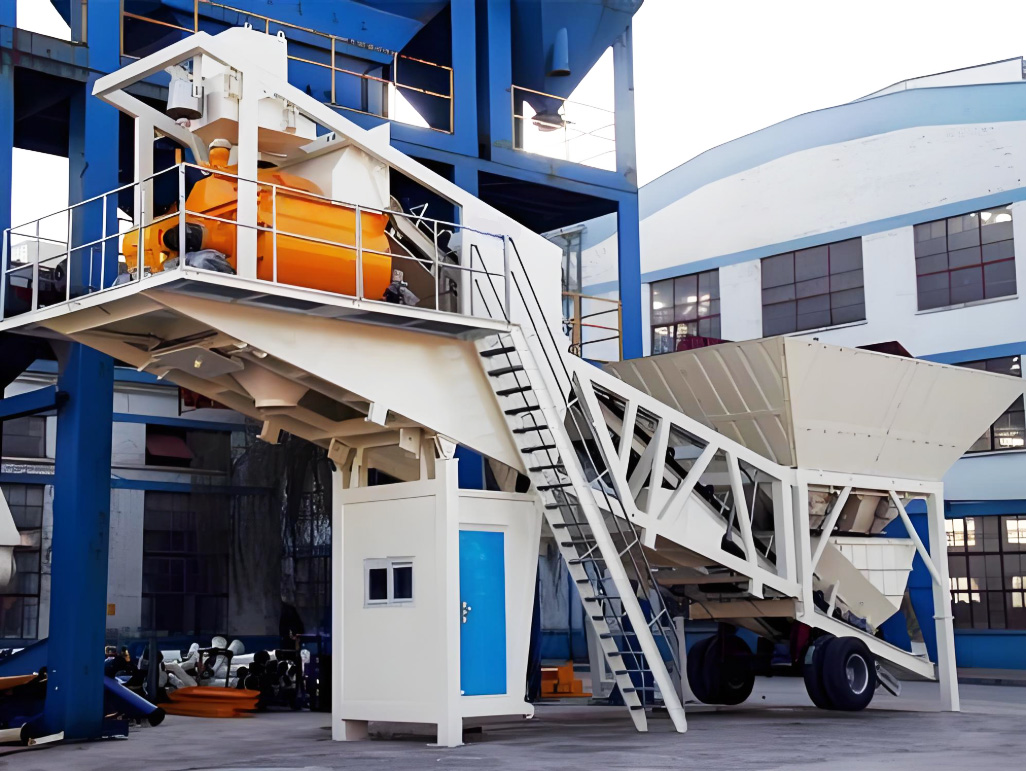

Mobile concrete batching plant YHZS50, whose production capacity is 50m³/h, adopts non-foundation and non-commissioning modular design, it features for good mobility, convenient and quick installation. It only takes 3 days from installing to using. In addition to that, YHZS50 cement mixing plant adopts patent technology “click to supplement”, double control system, self-correcting technology to ensure producing high-quality concrete.
YHZS50 adopt JS1000 twin-shaft compulsory mixer ad the host mixer, the mixing efficiency, mixing range wide, can fullest meet various producing requirement. YHZS50 batching plant is ideal concrete equipment for bridges, highway, port, water conservancy project and power station and so on.
Features
1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation
| Theoretical productivity of foundation-free HZS90 concrete mixing station | 50m3/h |
| concrete mixer model | JS1000 |
| Stirring motor power | 2×18.5kW |
| cycle period | 60/s |
| Mixer nominal capacity | 1000L |
| The largest particle size of aggregate | Φ80mm |
| Powder bin capacity | 50t/100t |
| Batching station batching capacity | 1600L |
| Aggregate bin capacity | 2×20m3 |
| Max.Dragging Speed | 40km/h |
| screw conveyor maximum productivity | 80t/h |
| Discharging height | 3.8m |
| Total Power | 85kw |
| Aggregate weighing range and accuracy | (0~5000)±2%kg |
| Cement weighing range and accuracy | (0~900)±1%kg |
| Fly ash weighing range and accuracy | (0~500)±1%kg |
| Water weighing range and accuracy | (0~400)±1%kg |
| Admixture weighing range and accuracy | (0~50)±1%kg |
Concrete mixer
JS series concrete mixer is a twin-shaft forced mixer, which has two advantages of independent performance and simple concrete mixing station with PLD series batching machine. It can be used to mix dry hard concrete and various mortars, and is very popular in civil construction engineering, road and bridge construction.
PLD Series Batching Machine
PLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
Structure
Smart mobile concrete batching plant adopts strong and thick section steel, possessing good shock resistance ability, on the other hand, the overall structure is compact and well-designed, suitable for quick installation, dissembling and convenient dragging.
Cement Silo
It is suitable for bulk cement storage silos in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has a small footprint, long service life, and low cost.
Weighing System
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Control room
Full automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
