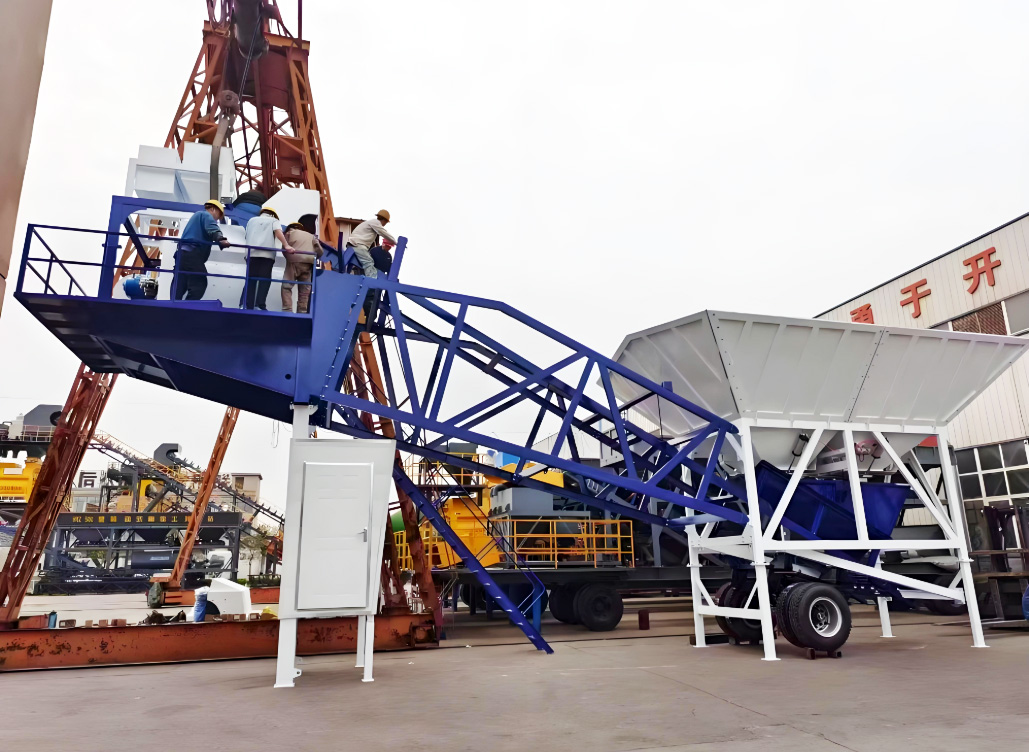

The YHZS series mobile concrete batching plants from Jinhuiyuan Machinery offer outstanding advantages for modern construction needs:
• Flexible Mobility: Easily transported and relocated, ideal for projects with frequent site changes such as road, bridge, and infrastructure construction.
• Quick Installation: Foundation-free design and compact structure enable rapid setup, saving valuable time and labor costs.
• High Efficiency: Advanced automation and precise weighing systems ensure stable, high-quality concrete output with every batch.
• Cost-Effective: Energy-saving operation and reduced installation requirements lower overall project expenses.
• Reliable Performance: Robust construction and durable components guarantee long-term, trouble-free operation in diverse environments.
Choose the YHZS series for a competitive edge—streamlining your workflow, accelerating project timelines, and delivering consistent results wherever your work takes you.
| Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | YHZS90 |
|---|---|---|---|---|---|
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 75 | 90 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1500 | JS2000 |
| Mixer Power (kW) | 18.5 | 30 | 2x18.5 | 2x30 | 2x37 |
| Mixing Cycle Period (s) | 72 | 60 | 60 | 60 | 60 |
| Max.Aggregate Size (mm) | 40/50 | 40/60 | 60/80 | 60/80 | 60/80 |
| Weighing Range & Accuracy of Aggregate (kg) | (0~5000)±2% | (0~5000)±2% | (0~5000)±2% | (0~5000)±2% | (0~5000)±2% |
| Weighing Range & Accuracy of Cement (kg) | (0~900)±1% | (0~900)±1% | (0~900)±1% | (0~900)±1% | (0~900)±1% |
| Weighing Range & Accuracy of Water (kg) | (0~400)±1% | (0~400)±1% | (0~400)±1% | (0~400)±1% | (0~400)±1% |
| Weighing Range & Accuracy of Additive (kg) | (0~50)±1% | (0~50)±1% | (0~50)±1% | (0~50)±1% | (0~50)±1% |
| Aggregate Bin Capacity (m³) | 2×20 | 2×20 | 2×20 | 2×20 | 2×20 |
| Powder Storage Silo (ton) | 30/50/100 | 30/50/100 | 50/100 | 50/100 | 50/100 |
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.2 | 4.2 | 4.2 |
| Installation Power (kW) | 35 | 60 | 85 | 100 | 100 |
Concrete Mixer
YHZS-Series Mobile Concrete Batching Plant adopts top-quality JS-Series twin shaft forceful concrete mixer, which features for quick and uniform mixing, high efficiency, wide mixing range and excellent-quality concrete, can fullest meet different producing requirement.
PLD Series Batching Machine
PLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
Belt Conveyor
The length and width of the belt is 800mm*12mm. The belt is made of four-layer nylon, which is durable. The purpose of conveying materials is to convey dry particles from top to bottom through air, which is energy-saving, noise-free, maintenance-free, and accurate in measurement.
Main Structure
Smart mobile concrete batching plant adopts strong and thick section steel, possessing good shock resistance ability, on the other hand, the overall structure is compact and well-designed, suitable for quick installation, dissembling and convenient dragging.
Cement Silo
It is suitable for bulk cement storage silos in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has a small footprint, long service life, and low cost.
Weighing System
Water weighing, cement weighing, additive weighing, and other weighing systems can also be installed according to customer requirements. It adopts three-point weighing method, which has the characteristics of accurate weight, automatic compensation, fast speed and convenient operation. The weighing error is controlled within ±1%.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Cab Room
Full automatic control, Siemens motor and Schneider electrical elements. The controls system adopts Siemens hardware and Windows operation platform, can realize manual operation, semi-automatic operation and fully-automatic operation. Long-distance troubles can be excluded easily by internet and telecom, which largely improves users’ ability to find out the problems and carry on maintenance.
Zhengzhou Jinhuiyuan Machinery Manufacturing Co., Ltd. is a heavyweight in the world of construction machinery, headquartered on the storied banks of the Yellow River in Henan Province—the “Silicon Valley” for Chinese construction equipment. With over 20 years of industry experience, we have evolved from a humble equipment workshop into a modern, intelligent manufacturing powerhouse, boasting a registered capital of 31 million yuan and a reputation that stretches from the heart of China to the edges of Asia, Africa, and Latin America.
Warranty Period
Jinhuiyuan Machinery provides a lifetime warranty for the machine. The first 12 months are completely free of charge, excluding damages caused by improper operation.
2. Free Spare Parts
To ensure minimal downtime, Jinhuiyuan Machinery will supply one full set of spare parts along with the machine.
With 12 specialized workshops, we can manufacture and deliver any required spare parts to you within 48 hours.
3. Technical Support
Our engineers will provide comprehensive training to your operators, covering:
4. Local After-Sales Service
If 5 or more machines are sold in a single region, Jinhuiyuan Machinery will establish a local office to provide dedicated after-sales support.
