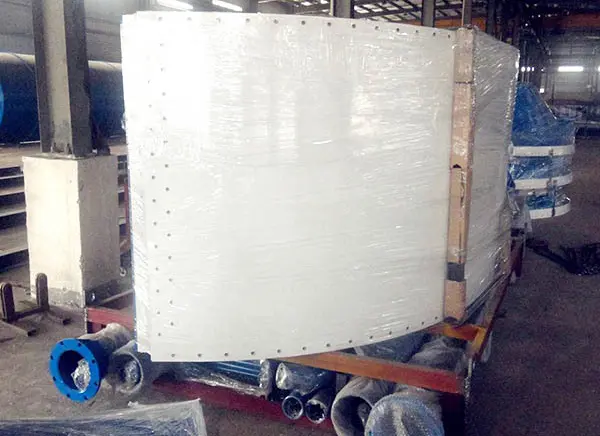

Slice cement silo is a type of cement silo. It is mainly produced in slices, which can greatly save transportation costs. Jinhuiyuan sheet cement silos are suitable for storing various bulk materials such as grain, cement, fly ash, etc. The tank is equipped with a material level system that can display the location and amount of materials. The hole-breaking device can relieve the solidification caused by the material being deposited for too long.
一、composition
The cement silo (cement tank) is composed of the following parts: steel structure part of the silo, ladder, guardrail, feeding pipe, dust collector, pressure safety valve, high and low material level gauge, discharge valve, etc.
二、structure
The cement silo (cement tank) has a cylindrical structure, with four round tube legs supporting the entire silo at the bottom. The entire silo is made of steel structure and welded; there is a dust collector and a pressure safety valve on the top.
| Cement silo model | Tank diameter | Tank height | Total tank height | Matching concrete mixer | Matching screw conveyor |
| SNC 30T | 2.5m | 4.8m | 11.4m | JD350 | LSY 163 |
| SNC 50T | 3m | 5.4m | 12m | JS500 | LSY 180 |
| SNC 80T | 3m | 9m | 15.6m | JS750 | LSY 180 |
| SNC 100T | 3m | 11.4m | 18m | JS1000 | LSY 230 |
| SNC 150T | 3m | 23.5m | 29m | JS1000 | LSY 230and other series |
| SNC 200T | 4.5m | 18.6m | 25.2m | JS1500 | LSY 230and other series |
| SNC 300T | 4.5m | 24.6m | 29.5m | JS2000 | LSY 230and other series |
| SNC 500T | 6M | 22.2m | 28.8m | JS3000 | LSY 230and other series |
The tank is equipped with a material level system that can display the location and quantity of the material. The hole-breaking device can relieve the solidification caused by the material being deposited for too long.
