Product Overview: HZS25 Stationary Concrete Batching Plant
This product Low cost mini concrete batching plant for sale is equipped with the storage, batching, conveying, stirring, control and other devices of various raw materials required for precast concrete, and various aggregates, powders, admixtures, water, etc.A complete set of equipment for supplying concrete in a concentrated manner than by a mixer.
This kind of 25m³ concrete batch plant is of simple structure, easy installation and disassembling, convenient construction, widely applied to various big and middle industry and civil construction of bridge, highway, water conservancy project and wharf and so on. HZS25 cement batching plant, capable of excellent mixing hard-dry concrete, light aggregate concrete and various mortars, is an ideal equipment to produce commercial concrete.
Concrete batching plant HZS25, whose production capacity is 25m³/h, flexibly consists of JS500 twin shaft concrete mixer, PLD800 batching machine, cement silos, control system and relevant equipment. On the other hand, the JS500 twin shaft concrete mixer, compulsory and efficient, can work independently.
PRODUCT NAME : HZS25 Stationary Concrete Batching Plant
| Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
|---|---|---|---|---|---|---|---|---|
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer Model | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS3000 |
| Mixer Power (kW) | 18.5 | 30 | 37 | 37 | 60 | 60 | 74 | 110 |
| Mixing Cycle Period (s) | 72 | 72 | 60 | 60 | 60 | 60 | 60 | 60 |
| Max.Aggregate Size (mm) | 40/50 | 40/60 | 60/80 | 60/80 | 60/80 | 60/80 | 80/100 | 100/120 |
| Standard Aggregate Bin Capacity (m³) | 3.5 | 3.5 | 5 | 5 | 15 | 15 | 18 | 23 |
| Kind of Aggregate | 2-4 | 2-4 | 2-4 | 2-4 | 4 | 4 | 4 | 4 |
| Batching Machine Model | PLD1200 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 |
| Max. Discharging Height (m) | 3.8 | 3.8 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 | 4.1 |
| Overall Weight (ton) | 7 | 9 | 13 | 18 | 18 | 25 | 32 | 45 |
| Installation Power (kW) | 48 | 66 | 85 | 110 | 130 | 145 | 185 | 210 |
Concrete Mixer

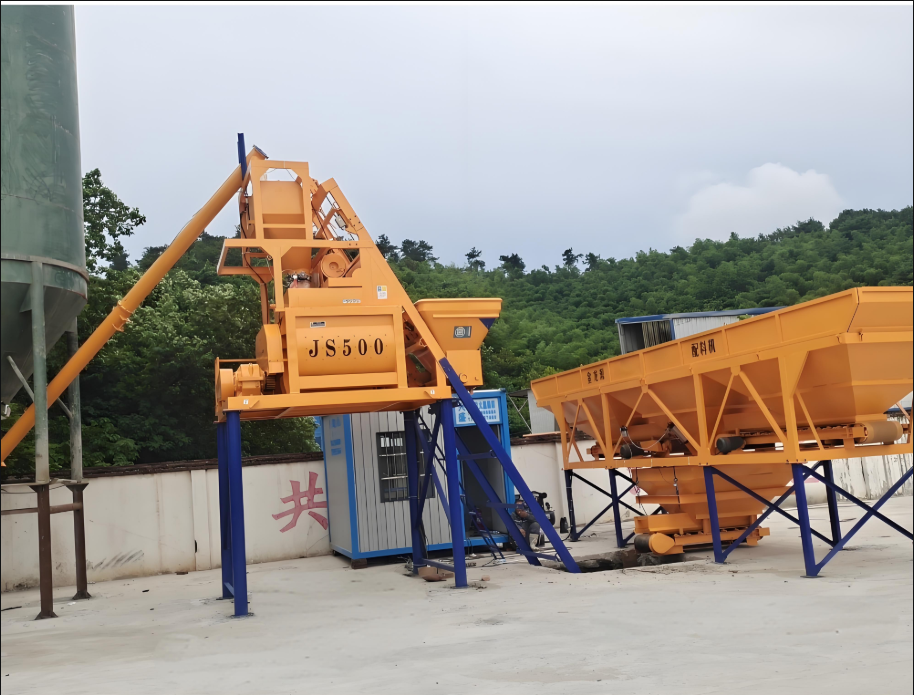

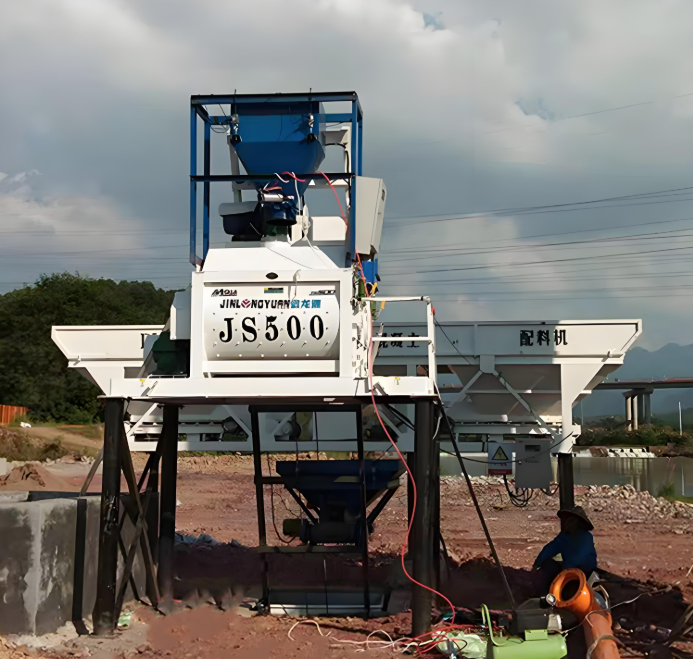

YHZS25 concrete batch plant adopts top-quality JS500 twin shaft forceful concrete mixer, which features for quick and uniform mixing, high efficiency, wide mixing range and excellent-quality concrete, can fullest meet different producing requirement

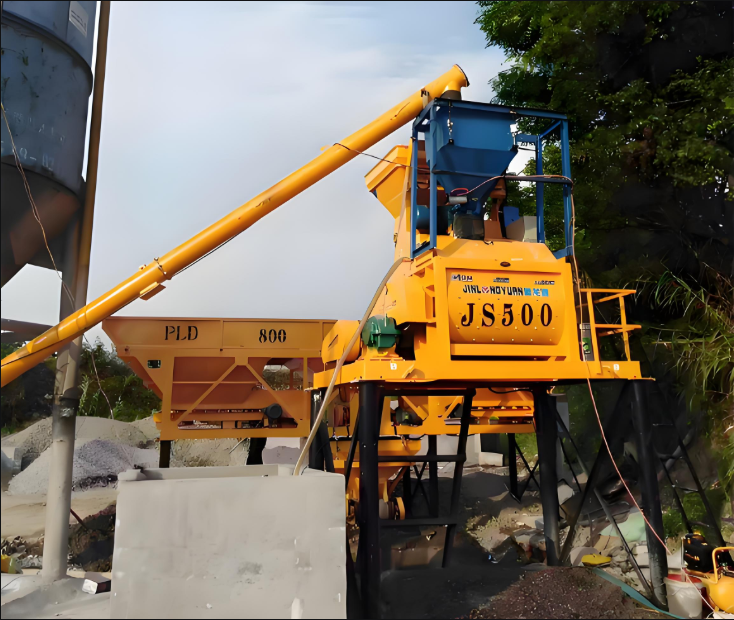

PLD Series Batching Machine
PLD series concrete batching machine adopts electronic weighing, computer control and digital display, which can automatically complete the batching procedures of 3-6 kinds of aggregates such as sand, stone and cement. Hopper cumulative weighing, belt cumulative weighing and individual weighing are available.
Cement Silo
It is suitable for bulk cement storage silos in engineering construction, commercial concrete mixing plant, road and bridge water conservancy projects, urban construction and other projects. It is waterproof, moisture-proof, prevents cement loss, reduces urban air dust pollution, has a small footprint, long service life, and low cost.
Control Room
The control system adopts Siemens hardware and Windows operating platform, which can realize manual operation, semi-automatic operation and fully automatic operation. Remote faults can be easily eliminated through the Internet and telecommunications, improving the user's ability to find problems and perform maintenance.
Zhengzhou Jinhuiyuan Machinery Manufacturing Co., Ltd. is a heavyweight in the world of construction machinery, headquartered on the storied banks of the Yellow River in Henan Province—the “Silicon Valley” for Chinese construction equipment. With over 20 years of industry experience, we have evolved from a humble equipment workshop into a modern, intelligent manufacturing powerhouse, boasting a registered capital of 31 million yuan and a reputation that stretches from the heart of China to the edges of Asia, Africa, and Latin America.
Main Products
Our bread and butter? Concrete batching plants and their sidekicks. We specialize in:
• HZS series concrete mixing plants (the workhorses of any construction site)
• WBZ stabilized soil mixing plants (think: the secret sauce for solid foundations)
• JS concrete mixers (mixing with the precision of a Swiss watch)
• PLD concrete batching machines (for those who like their aggregates perfectly portioned)Each product is engineered for reliability, efficiency, and longevity—built to weather both storms and deadlines.
Export Experience
We’re not just local heroes. Our machines are hard at work in Myanmar, Indonesia, Laos, Mongolia, Russia, Kazakhstan, Cambodia, Kenya, and beyond. Like a good story, our reputation travels—thanks to our focus on quality, tailored solutions, and hands-on technical support. Whether it’s a jungle in Southeast Asia or a steppe in Central Asia, “Jinlongyuan” machinery keeps projects moving and clients smiling.
Competitive Advantages & Unique Selling Points
• Quality Obsession: Every weld and bolt is inspected like it’s a work of art—because to us, it is.
• Customization: Need a mixing plant that fits your site like a glove? We build to spec.
• Full-Service Support: From installation guidance to rapid troubleshooting, our expert team is just a call away.
• Global Perspective: We speak “construction” in multiple languages—and time zones.
1. Guarantee Time
All of the life time of SMART machine, free for the first 12 months except the wrong operation.
2. Free Spare Parts
SMART will prepare the one set spare parts and delivery them along with the machine.
SMART have the 12 workshops to produce every parts and we can produce spare parts to deliver them to you within 2 days.
3. Technical Supporting
SMART Engineer will train you workers to make sure that they know every detail about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem.
4. Office
If we have more than 5 orders in one Area, we will set one office there to take care the after-sales service.
Ready to mix things up? If you’re interested in our products, just smash that red “Get a Quote” button and leave us a message. Our sales pros will spring into action and get in touch with you—complete with a tailored quote—within 24 hours. Fast, easy, and no guesswork—let’s build something great together!
